smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

Marushin Browning HP, Pindad version, ABS Empty
PostSubject: Marushin Browning HP, Pindad version, ABS   Marushin Browning HP, Pindad version, ABS Icon_minitimeSat May 01, 2010 10:08 pm

History
Once upon a time a man called John Browning laid down designs for most of the iconic pistols, including Colt 1911, Colt .25, Colt.32, Colt Woodsman, FN/Browning M1910, Winchester rifles, M1919 and M2 machine guns and BAR (Browning Automatic Rifle). Not just pistols, but ammo as well: .25 ACP, .32 ACP, .380ACP, .45ACP and .50 BMG are still widely used.

After selling his patents for pistol Model 1911 to Colt, Browning was asked by Belgian FN (Fabrique Nationale) company to design an automatic pistol. By 1923 he started design of a new pistol, his last work. Death in 1926 did not stop development - Dieudonne Saive continued his work and created FN Grand Puissance in 1935. The same pistol is called FN P35, Browning High Power (translation of French "Grand Puissance") or Hi-Power (American spelling I guess).

It is worth noting that Colt 1911 patents expired in 1928, and FN was able to use several of them in their designs. Just compare patents duration (20 years in USA) with copyrights (life+70 years).

Browning HP entered service in many, many countries. Already during WWII it was used by both sides (after Germans captured FN) and manufactured in Canada (by John Inglis) based on original designs. After the war it was produced (with or without license) in numerous countries, and used as late as in 1990s.

Wikipedia information about this pistol:
http://en.wikipedia.org/wiki/Browning_Hi-Power

More information from various sources:
http://www.browning.com/products/catalog/family.asp?webflag_=007B
http://world.guns.ru/handguns/hg17-e.htm


Modelgun
Browning designs are widely reproduced by modelgun makers. Hi-Power model was however manufactured by just two makers. Nakata created a metal model, reproduced later by Marushin. Marushin also released a whole series of Browning HP modelguns with various markings: Military, Commercial, Target, Canadian, Chinese, Indonesian... Initially they were made of ABS and featured side-firing system (bar pushes whole cartridge onto detonator pin), later from HW and converted to center-fire (firing pin pushes just center plug onto detonator). These modelguns were also released as kits. I think there was also dummy-cartridge version later on.

Modelgun information (mainly in Japanese):
http://homepage3.nifty.com/nkoinuma/Browning.htm
http://web3.incl.ne.jp/shiraaya/marusin-browning-hp.htm

Browning HP was never my favourite pistol and I did not really look to get one. However, out of interest in modelguns when an occasion came up, I got a second-hand one. It is a Marushin-made model of HP Indonesian version (Pindad), made of ABS.


Box
There were many types of boxes, depending on actual model. My Browning did not come in original box, but you should be able to find pictures on websites I mentioned. Box probably included modelgun with a magazine, set of cartridges (13), instructions and a box of caps.

I got a copy of Marushin instructions for Browning HP Military kit version from a friend. They are very good and, surprisingly, written in English!

Eight pages total, they show exploded diagram plus detailed assembly instruction (these are for a kit). There is also section on handling, loading cartridges, maintenance and disassembly, all with pictures. I have to say that this probably is the best modelgun instruction I've ever seen. Marushin mentions three kits versions: Canadian No2 MK1, Commercial Vigilante and M1935 Military. I suppose the same instruction was included in all of them, as the only differences are external, in slide design. Military model has tangent sights, the other two - open sights of two different designs.



Modelgun
It is the lightest modelgun I've ever had. Made of light, shiny, black ABS, it's unbelievably light. A friend who bought HP as his first modelgun was very disappointed... Only after you insert magazine (metal) full of cartridges (metal) Browning HP becomes nicer to hold. It is grip-heavy due to weight distribution.

Browning HP looks somehow similar to Colt 1911, another John Browning design. Controls and other features are placed in the same way, with (in my opinion) cosmetic differences.

Marushin Browning HP, Pindad version, ABS 01-lef10
Marushin Browning HP, Pindad version, ABS 02-rig10
Marushin Browning HP, Pindad version, ABS 03-coc10

Left side features all controls: mag release button, slide stop and safety. Slide is marked "PABRIK SENDJATA RINGAN" with factory name: "PINDAD" underneath. There is also factory logo (a 5-armed star within a gear) and caliber marking "Pi.A 9mm". Slide is serrated near the back, to make cocking easier.

Slide stop locks on empty magazine. It is a bit similar to 1911 version, but shaped differently.

Safety lever is very small, on left side only in my version. I am not quite sure how it is supposed to work.
In model I have it physically locks the slide, but it does not prevent hammer from falling when trigger is pulled.
Not sure if this is by design, or something wore out :-?

Mag release button is behind trigger guard on the left side - standard for modern pistols.

Model grips are black and plastic, with knurling for a better hold. Each grip is held by a screw. Bottom left side has a ring for attaching a lanyard.

Marushin Browning HP, Pindad version, ABS 10-det10
Marushin Browning HP, Pindad version, ABS 11-det10
Marushin Browning HP, Pindad version, ABS 12-det10

Right side has an ejection port, with chamber marked "Cal 9m/mP". Slide itself is marked "2231980" (probably a fake serial number) and "MFG.MARUSHIN". There is also a fake ejector claw molded into the slide.

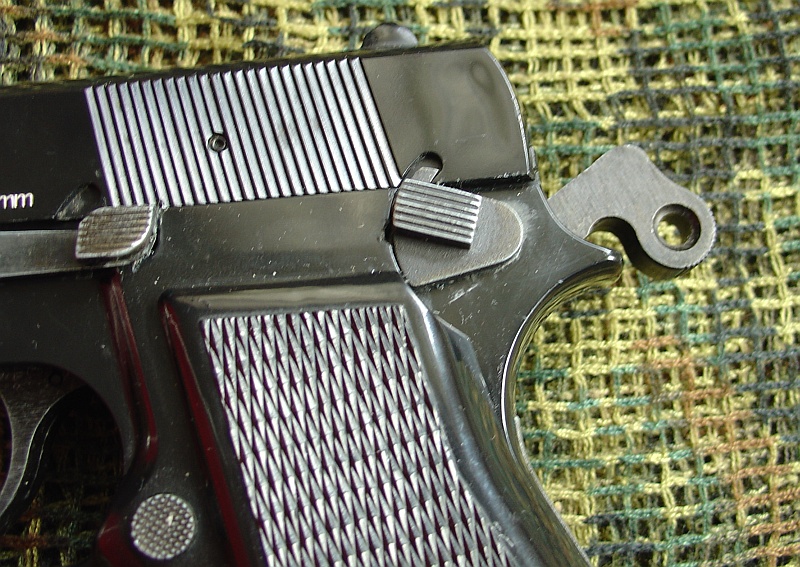

Hammer is ring-type. There is a hammer spur, but a small one - your palm webbing might get hurt.

Marushin Browning HP, Pindad version, ABS 13-det10
Marushin Browning HP, Pindad version, ABS 15-ham10

Barrel has a metal insert, typical for ABS modelguns.

Sights in this HP variant are open type, fixed. There is no provision to change anything. There is no white dot or other aid to help in targeting.


Magazine
Magazine is made of sheet metal, adding significant weight to the modelgun. It is a single folded sheet of metal, plus a bottom plate, spring and aluminum follower.

Browning HP was one of the first guns to feature double-stack magazine and model replicates that feature: it has a capacity of 13 rounds.

Marushin Browning HP, Pindad version, ABS 20-mag10
Marushin Browning HP, Pindad version, ABS 21-mag10

Modelgun magazine is virtually the same as the original Browning one, but the notch for magazine catch is cut lower than in the real magazine. Original Browning HP magazine fits modelgun, except that it does not lock correctly (due to a different place of notch) and spring is much too strong for modelgun. It also has a different bottom plate construction: modelgun is a single piece (held by a "claw"), while original one is two layers (held by "button").

Top: modelgun magazine, bottom: real magazine.

Marushin Browning HP, Pindad version, ABS 22-two10
Marushin Browning HP, Pindad version, ABS 23-two10
Marushin Browning HP, Pindad version, ABS 24-mag10

HP magazine is also part of safety system. Trigger is not connected to the hammer or the sear. There is a trigger bar that pushes another pivoting bar mounted in the slide, which in turn pushes down on sear and releases the hammer. Trigger bar will not push slide bar, unless it is held up by the magazine.

Marushin Browning HP, Pindad version, ABS 85-mag10
Marushin Browning HP, Pindad version, ABS 86-mag10


Cartridges
Typical Marushin design: two parts that are screwed together. Steel firing pin is an integral part of the bottom piece. There is a floating piece that goes in the top piece, and a cap facing downwards goes in top piece too.

Firing pin is made of steel and it rusts very quickly - you should take good care of cleaning and drying cartridges.

Marushin Browning HP, Pindad version, ABS 30-car10
Marushin Browning HP, Pindad version, ABS 31-car10


Firing
Performance is typical for Marushin style cartridges and firing system. Browning HP is a nice shooter, working quite well, with good blowback action. It is fairly quiet, compared to MGC cartridges or other designs. High magazine capacity ensures good experience.

Trigger pull is quite heavy, you need a strong pull to make it work. Original Browninig HP has the same feature - some people modify their pistol and remove magazine safety mechanism to get a better trigger characteristic.

One problem I have encountered is that safety pin just falls out of the model while firing. In addition, it first shoots away a spring-loaded plunger that is supposed to lock safety in safe/fire positions.

Marushin Browning HP, Pindad version, ABS 14-coc11

Problems
Apparently no product is without problems, including modelguns ;-)

What I know about Marushin Browning HP based on experience:
  • it is unrealistically light, plastic and shiny
  • cartridges require extra care, as firing pin in the base rusts very quickly
  • safety lever tends to fly away when firing, additionally launching a spring-loaded plunger
  • barrel, chamber and slide are made of plastic, so feeding/ejection problems will contribute to their damage
  • sometimes cartridges will fire when model is cocked (like in other Marushin designs)



Basic disassembly
If you are familiar with Colt 1911 disassembly, Browning HP should not be difficult:
  • Pull the slide back, lock it in this position using safety lever
  • remove slide stop
  • take slide off towards the front.
  • remove return spring - take care! There is a spring-loaded plunger that will fly if you are not careful!


Marushin Browning HP, Pindad version, ABS 80-dis10
Marushin Browning HP, Pindad version, ABS 81-dis10
Marushin Browning HP, Pindad version, ABS 82-dis10
Marushin Browning HP, Pindad version, ABS 83-dis10
Marushin Browning HP, Pindad version, ABS 84-dis10

Further disassembly:
  • unscrew firing block from the back of the slide
  • remove barrel from the slide
  • unscrew detonator pin from the barrel


You can now clean barrel and detonator pin, as well as other elements: chamber area, firing block, top of the magazine.

Overall
I have mixed feelings about this Marushin model of Browning HP. It it a bit unrealistic: very light and plastic. HW versions are probably much better in this regard. Blowback mechanism is quite good - if only the safety lever did not fly away.

I have an ABS P38 model by Marushin that has very similar finish. Because I generally like P38, I like the model too. I think that if you like Browning HP, you might like Marushin model :-)
Back to top Go down
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

Marushin Browning HP, Pindad version, ABS Empty
PostSubject: Re: Marushin Browning HP, Pindad version, ABS   Marushin Browning HP, Pindad version, ABS Icon_minitimeSun May 02, 2010 11:23 pm

More pictures of various Browning HP modelguns:
http://homepage2.nifty.com/yamaneco/gun/pistol/fn/html/hp.htm
Back to top Go down
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

Marushin Browning HP, Pindad version, ABS Empty
PostSubject: Re: Marushin Browning HP, Pindad version, ABS   Marushin Browning HP, Pindad version, ABS Icon_minitimeSun May 30, 2010 10:14 am

A bit of Browning history, just text :-)

Before WWII Browning HP was bought mainly by smaller countries that did not have their own weapon factories - Estonia, Lithuania, Peru, Yemen, Egypt... China has bought a few hundred pieces for testing - they liked it, but discovered that after intensive use it fails. Bar that moves barrel broke from from stress. Shape of locking slot was changed in 1938 and China ordered a few more thousands promising tens of thousands in future.

WWII broke out and after a year Germany overtook FN factory. Production of Browning continued for German Army, it had designation P640(b). It was a very successfull pistol, yet not used by Allies. The change came, suprisingly, in mid-1941 when China joined Lend-Lease program and requested Czech ZB vz.26 machine guns and 200 000 Brownings! Instead of vz.26 they got BRENs (English variant of vz.26) manufactured in Canada in John Inglis factory.

British agreed to produce Browning HP in Canada and initially wanted to send Dieudonne Saive, its constructor, to Toronto. Saive had hidden FN documentation before running away from Belgium and he reconstructed BREN and later Browning HP for Canadians. Saive returned to England where he worked on EXP-1 rifle (which later became SAFN 49 and then replaced by FN FAL).
Canadians did not have full documentation, they helped themselves by copying a Chinese Browning. There was a problem though - documentation redrawn by Saive has shown improved bar/locking slot design, while pistol sample had the old design, prone to breaking. It was decided that Saive made a mistake in reconstruction and Inglis started producing older version. Additionally they had to convert all metric sizes to imperial ones, creating additional problems Due to all these faults and breakages Inglis pistols did not have a good opinion. Only in December 1943 Saive arrived in Toronto to fix these problems.
Meanwhile original documentation was recovered by Resistance and sent to Inglis factory, where it was promptly ignored - they preferred to rely on their reconstructed version.
Just to add to the confusion China resigned from purchasing further Brownings HP. A total of 150 thousands has been produced until end of WWII, when licensing agreement for Inglis has ran out.

After the war, surprisingly, Browning HP was still wanted by customers! Over 400 thousands from WWII have already been absorbed by various countries, yet they started ordering more and more of these pistols from FN. Manufacturer did a nice trick there, changing sizes for the post-war production, making parts not interchangeable with earlier model and forcing users to purchase new parts from them.
Back to top Go down
pitfighter
Modelgun Master
Modelgun Master
pitfighter


Number of posts : 616
Location / Country : Hollywood, California
Registration date : 2008-09-07

Marushin Browning HP, Pindad version, ABS Empty
PostSubject: Re: Marushin Browning HP, Pindad version, ABS   Marushin Browning HP, Pindad version, ABS Icon_minitimeMon May 31, 2010 5:51 am

Nice job, Smootik,

Great pics too, sir.

How do you find the time to write these terrific reviews?

I think i speak for many when I say, we all appreciate them.

JJ

PS. I love the Hi-Power, and have owned many real ones, it is usually (some issues with the modern Portuguese clones) a tremendous shooter, points very well, and it's robust and extremely hardy. I have shifted my feelings to the 1911 because of the ballistics of the 9mm, not because of any shortcomings of the Hi-Power. I once competed in an IPSC tournament with a stock Hi-Power just to see how I did, and it carried itself very respectfully.
Back to top Go down
Cerwyn
Cerwyn (Site Admin)
Cerwyn (Site Admin)
Cerwyn


Number of posts : 11073
Age : 65
Location / Country : North Wales
Registration date : 2008-07-20

Marushin Browning HP, Pindad version, ABS Empty
PostSubject: Re: Marushin Browning HP, Pindad version, ABS   Marushin Browning HP, Pindad version, ABS Icon_minitimeMon May 31, 2010 10:08 am

pitfighter wrote:
Nice job, Smootik,

Great pics too, sir.

How do you find the time to write these terrific reviews?

I think i speak for many when I say, we all appreciate them.

JJ


I couldn't agree more, smootik's reviews are superb, make fascinating reading and give all the information any owner or propective buyer is likley to need. Outstanding work and very much appreciated Marushin Browning HP, Pindad version, ABS Icon_biggrin

_________________
Cerwyn

Hobby collector of Replica model guns and Militaria.
also member of Living History Reenactment Groups.
Back to top Go down
https://mp40modelguns.forumotion.net
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

Marushin Browning HP, Pindad version, ABS Empty
PostSubject: Re: Marushin Browning HP, Pindad version, ABS   Marushin Browning HP, Pindad version, ABS Icon_minitimeMon May 31, 2010 10:15 am

Having time is a function of how badly I want to write down these reviews and how many other things can wait at the moment ;-) Writing is often done in smaller pieces, added as I have some time. It is easier to manage timewise, though I prefer single long sessions just doing it from A to Z.
Whenever taking pictures I try to photograph more than one model. Right now I have pictures of 4 models waiting for accompanying text to be written. There is also a completed text that awaits pictures. It is a sort of pipeline that got started quite a long time ago and started to produce completed work recently.

I'm glad that time spent doing reviews is worth your compliments :-)

Funny that I did not even knew of Browning HP existence before I got the modelgun. I knew about 1911 (my favourite pistol based on looks and mechanism, did not have chance to shoot it yet) and many other pistols (mainly WWII), but not this one. I was surprised to learn that it was and still is so popular design. Shows how little I know about firearms, huh? ;-)
