PostSubject: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeFri Dec 17, 2010 5:19 pm

This is a small Christmas gift for forum members :-)

History
History of Beretta M1934 started when Walther PP became very popular in 1930s and Italian Army became interested in this Walther pistol. Beretta decided not to lose such an important order and designed Model 1934, a small pocket pistolet chambered in Browning 9mmx17 (.380 ACP), NOT more powerful Parabellum 9mmx19 (Luger). There was also a 7.65mm (.32 ACP) variant called M1935, release a year later.
Beretta M1934 was a robust pistol that became a standard Italian Army pistol and has seen extensive use during WWII. Total production is over a million units (including post-war ones). It was produced until 1991, so pistol is still quite available on the market.

Wikipedia information about M1934:
http://en.wikipedia.org/wiki/Beretta_M_1934

More information:
http://world.guns.ru/handguns/hg236-e.htm
http://www.berettaweb.com/armi/Beretta%20mod%201934%20&%201935.htm


Modelgun
Many Beretta M1934 modelguns were produced over the years by manufacturers such as MGC, RMI, Western Arms, CMC, Hudson and WaShan.

Originally the design was created by MGC, who released a metal modelgun in late 1960s or early 1970s. It was available initially as a dummy version, then later released also in blowback versions. Around the same time CMC and Hudson released their M1934s, too. Export version of MGC was sold under RMI mark primarily in England and USA.

MGC and other companies had to stop production of metal pistols in 1977 after the second law change in Japan. At that moment Western Arms entered picture. They cooperated with MGC and released M1934 that was based on MGC blowback mechanism, MGC parts and original molds modified for plastic (ABS) production process. Western Arms sold several versions, including deluxe model with satin painted metallic gray finish (instead of shining plastic) and grip panels made of wood on brass plate. As far as I know there was no HW version, as this material was not developed at the time. WA also sold an airsoft version, shooting 6mm plastic balls using compressed gas. Tanaka had an airsoft version of M1934, too, not sure if they did a cap-firer (probably not).

Much later WaShan started to produce modelguns. Being a Taiwanese company they did not need to comply with Japanese law and could produce an all-metal modelgun of Beretta M1934. I think it is at least partially based on MGC/WA model.

As for accessories I only know of an MGC silencer. It was simply pushed into the barrel (not screed), and it had a cutout to accomodate metal bar blocking barrel.

More information about MGC, CMC and Hudson versions:
http://www7a.biglobe.ne.jp/~yon-yon/cgi/test3.cgi?Input2=beretta

A bit of history and Western Arms version:
http://homepage3.nifty.com/nkoinuma/Beretta2.htm

Beretta M1934 is a lovely little gun with interesting look and design features, I was interested in it for a long time. A long time ago I planned to get Western Arms airsoft version, only to find that it is pretty much sold out already. A few years later a metal modelgun version was offered on sale here on forum, and temptation was just too big to let it go :-)


Box
Model that I got was without its original box, so I can't say what it should look like ;-) In fact I have not seen RMI box yet even on photos. You can easily find pictures of Western Arms box though. I also found a picture of MGC box, with model and silencer.

MGC (RMI) Beretta 1934, metal Mgc_be10

Modelgun
While I am not a big fan of larger Berettas, this little one is very attractive to me!

Somehow M1934 has just the right proportions to my eye and to my hand. Being made of metal it is nicely heavy and cold to the touch. As usual with Berettas, shapes are not straight and it's not that easy to describe them using just words.

MGC (RMI) Beretta 1934, metal 10-lef12
MGC (RMI) Beretta 1934, metal 11-rig12

Slide is open at the top, just like in its larger brothers. Due to this hole, sides had to be made much thicker to preserve slide's strength. Front is slightly curved towards the end of barrel sticking out of slide. Left side of the slide features the following text: "ITALIANO CAL. 9m/m AUTOMATICO MODELLO PISTOLA" and "MODELLO M 1934 67". Just under the text there is a notch for a slide catch. Slide is serrated behind the text. Right side of this RMI model is marked simply "JAPAN". MGC version had a slightly different markings here: "MADE IN JAPAN" and a 4-digit serial number.

MGC (RMI) Beretta 1934, metal 20-lef14

Sights are very simple, fixed, moulded with the slide, like in the real pistol..

Frame has a classic shape. Left side of the grip features a metal loop for attaching a leash. Upper part features a safety lever (also on the left side), just under the slide. Back position is safe (and disassembly), front position is fire.

MGC (RMI) Beretta 1934, metal 21-lef10

Trigger sits in its guard in the usual place :-)

Hammer is round, with a hole through the middle and serrations on the outside.

MGC (RMI) Beretta 1934, metal 13-top10

Grips are black, plastic, with inlaid metal RMI logo. MGC version had "PB" logo, unfortunately removed for this export version. They are each held by a screw. This is a bit different from original ones, where grip panels had additional metal sheet underneath.

Magazine release catch is located under the grip, at the back. You need to pull it backwards to release the magazine. This is "older" design, modern pistols have mag catch button near trigger guard.

MGC (RMI) Beretta 1934, metal 12-ang10

Overall it is a very simple, yet elegant model.


Magazine
Magazine is probably the best looking part of the model, showing its full beauty after you take it out of the model.

It is metal, with a metal follower and spring that you can see through large cuts in the walls of the magazine (problem in real pistol, dirt easily got inside). Bottom of the magazine has a curved spur (or a shoe, depending how you look at it) that extends grip and makes your fingers hold it more comfortably. Side is stamped with "JAPAN". As you can see from pictures metal has a beauful colour, either from original processing, or maybe an oxidation layer that it got over more than 30 years of existence.

Capacity is 7 cartridges.

MGC (RMI) Beretta 1934, metal 40-loa10
MGC (RMI) Beretta 1934, metal 41-loa10
MGC (RMI) Beretta 1934, metal 42-mag11

Cartridges
This model has been converted to fire PFC cartridges, more precisely - Marushin Beretta M84 cartridges that have been slightly modified to fit. In real pistol both M1934 and M84 use Browning 9x17(.380 ACP) cartridge, while modelguns from different manufacturers have some differences. The tip of the cartridge has been reshaped making it about 0.2mm shorter and thinner. Weight, other dimensions and internal construction are left the same.

Cartridge is made of two parts screwed together. Bottom part features a removeable insert with detonator pin and an o-ring. Small piston goes into the top part, followed by a bottom-facing 7mm cap.

MGC (RMI) Beretta 1934, metal 43-mag10

Firing
Load cartridges with caps facing downward, typical for Marushin PFC(artridges) that I use here.
Insert up to 7 cartridges into the magazine and load magazine in the model.

Rack the slide to introduce the first cartridge into the chamber. Beretta M1934 is a single-action only pistol, it will not fire unless hammer is cocked (and cartridge in chamber). Make sure safety is set to "fire" (forward position) and... pull the trigger when you're ready :-)

Model makes a very nice metalic "clang!" type of sound when fired, highly satisfying Smile

Note: cartridges are ejected upwards!

After shooting remember to clean cartridges and model! This model does not have open barrel, and all bad things are routed backwards onto the frame, slide, magazine and other parts of the mechanism. Detailed cleaning is a must to avoid problems with this great metal model.

As I only fired 7 cartridges, it is hard to talk about performance of the mechanism. The first and fourth cartridge fired automatically after racking the slide, these were the only that ejected cleanly and far away. One jammed during ejection, the other four barely ejected out of the slide, falling either back on the model or by its side.

I would say these problems are typical for Marushin PFC. I have similar experience with their P38 nad M712, where cartridges easily get set off, and where performance is quite uneven. It seems to me that PFC design is much more sensitive than others.

When cleaning I discovered that detonator pin is moving slightly. Until I find a way to remove it (there's no visible grub screw) I do not plan to fire this model to avoid problems to accumulate.

Problems
I found no major problems with this model. As you may know, in the beginning of modelgun history CMC was the company known for making the most realistic replicas, while MGC focused on making action work good. This metal M1934 is no exception, mechanism functions very well, while keeping looks very good.

One weak point is grips - mines have already started cracking due to age and use. I got original M1934 wooden grips planning to replace original ones, but they do not quite fit due to size and mechanism differences.

A model I've seen on an auction had a broken plate that links trigger with rest of the mechanism. It did not survive stress of multiple trigger pulls, according to original owner. As a precaution I got a spare one.


Basic disassembly
Beretta M1934 (and MGC modelgun) has an unusual disassembly procedure.

First remove magazine and make sure that chamber is empty. Pull slide back and flip the safety lever slightly up so it holds slide in position. Now the fun part - remove barrel by lifting its back part upwards (yes, through the opening in the slide). After barrel is out of the model, move safety lever to "safe" position, this will allow slide to move forward and be taken off the frame. Return spring and rod will go off as well.

MGC (RMI) Beretta 1934, metal 50-dis10
MGC (RMI) Beretta 1934, metal 51-dis10
MGC (RMI) Beretta 1934, metal 52-dis10

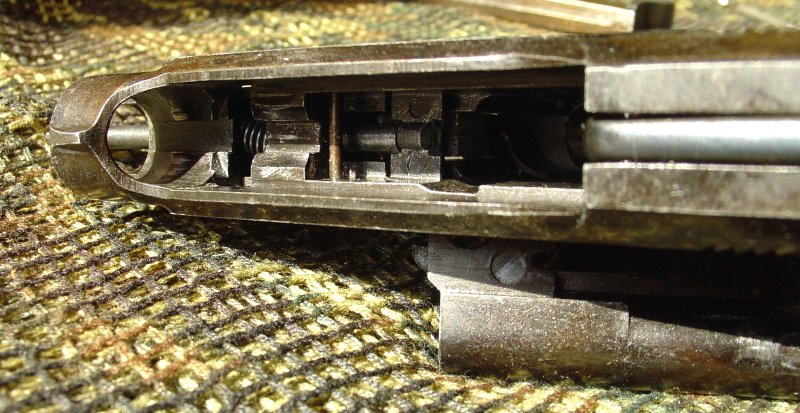

MGC (RMI) Beretta 1934, metal 67-sli10
MGC (RMI) Beretta 1934, metal 54-dis10
MGC (RMI) Beretta 1934, metal 55-dis10

A few details, including pivoting part (ejector)
MGC (RMI) Beretta 1934, metal 62-saf10
MGC (RMI) Beretta 1934, metal 63-fra10
MGC (RMI) Beretta 1934, metal 65-fra10

Barrel is partially blocked, there is a metal bar from the front, and detonator pin in the chamber.

MGC (RMI) Beretta 1934, metal 53-bar10
MGC (RMI) Beretta 1934, metal 61-cha11

Overall
I am very happy about this model. It is full metal, black, solid, well made, with lot of details, pretty, hopefully works without problems and on top of that it is quite rare and unusual, especially in this cap-firing version. I liked looks of M1934 and I am not disappointed by this model :-)

The only thing I regret is not buying a second one (dummy this time) at an auction I've seen a year ago.


Last edited by smootik on Fri Jan 07, 2011 6:09 pm; edited 2 times in total (Reason for editing : added firing section)
Back to top Go down
JohnnyV
Modelgun Perfectionist
Modelgun Perfectionist
JohnnyV


Number of posts : 552
Location / Country : Cambridgeshire UK
Registration date : 2009-08-24

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeFri Dec 17, 2010 5:41 pm

Thanks Smootik!
Nice review as always:)

I really like the look of that one, for some reason I like the golden colour that develops, it is a really "cute" little gun.
Again you make me want one!! Are you sure you were not a salesman for MGC in previous life lol!
Back to top Go down
claymore
Modelgun Perfectionist
Modelgun Perfectionist



Number of posts : 1249
Age : 64
Location / Country : London
Registration date : 2008-09-07

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeSat Dec 18, 2010 10:52 am

Another great eview mate and great pics. i am the opposite of you i like the larger beretta and not usually the small but the pics of this look good i would like one with the silencer as i dont have any models with a silencer. dont blame you for not firing it i have 2 old metal ones a S&W 44 and a browing high power and they can both fire but if anything breaks thats it as no spares, so i never fire them.
Back to top Go down
jim
Modelgun Perfectionist
Modelgun Perfectionist
jim


Number of posts : 988
Location / Country : Hong Kong / Sydney, Australia
Registration date : 2008-09-07

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeSun Dec 19, 2010 5:29 am

Shame this is the export version RMI so no authentic Beretta reference allowed - but still a great metal M1934 by all means!

The mechanism is quite different to the real ones... Question
Back to top Go down
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeSun Dec 19, 2010 2:39 pm

I plan to take and post (earliest in January) more pictures of the mechanism (with grips off) to show some details, as well as the usual size comparison with Colt 1911 and DVD. I need look for real M1934 mechanism pictures to see if they have much in common with this model, not sure how far this is from reality.
Back to top Go down
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeFri Jan 07, 2011 6:08 pm

As I was doing winter maintenance on my models, I took this one out and just fired it. Review is now updated with firing impressions, quoted below for easier reading.

New photos are not taken yet.

Jim - I paid attention to the mechanism this time. The slide part is definitely different than a real one. Model has something similar to side-fire system found in Marushin P38. There is just one moving bar - the back of it is hit by a hammer, the front pushes a cartridge onto detonator pin, while at the same time being an extractor hook.

Firing
Load cartridges with caps facing downward, typical for Marushin cartridges that I use here.
Insert up to 7 cartridges into the magazine and load magazine in the model.

Rack the slide to introduce the first cartridge into the chamber. Beretta M1934 is a single-action only pistol, it will not fire unless hammer is cocked (and cartridge in chamber). Make sure safety is set to "fire" (forward position) and... pull the trigger when you're ready :-)

Model makes a very nice metalic "clang!" type of sound when fired, highly satisfying Smile

Note: cartridges are ejected upwards!

After shooting remember to clean cartridges and model! This model does not have open barrel, and all bad things are routed backwards onto the frame, slide, magazine and other parts of the mechanism. Detailed cleaning is a must to avoid problems with this great metal model.

As I only fired 7 cartridges, it is hard to talk about performance of the mechanism. The first and fourth cartridge fired automatically after racking the slide, these were the only that ejected cleanly and far away. One jammed during ejection, the other four barely ejected out of the slide, falling either back on the model or by its side.

I would say these problems are typical for Marushin PFC. I have similar experience with their P38 nad M712, where cartridges easily get set off, and where performance is quite uneven. It seems to me that PFC design is much more sensitive than others.

When cleaning I discovered that detonator pin is moving slightly. Until I find a way to remove it (there's no visible grub screw) I do not plan to fire this model to avoid problems to accumulate.
Back to top Go down
jim
Modelgun Perfectionist
Modelgun Perfectionist
jim


Number of posts : 988
Location / Country : Hong Kong / Sydney, Australia
Registration date : 2008-09-07

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeFri Jan 07, 2011 7:13 pm

Tks so much smootik - glad that you still have this in mind Very Happy ...so there's give-and-take: during the 70s we got guns with more realistic materials but with less realistic mechanism - nowadays the other way around...and I tend to go for the latter...





...but still - this M1934 looks quite right for me Very Happy (some old metal modelguns simply don't have the right shape)...
Back to top Go down
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeFri Jan 07, 2011 7:37 pm

I guess it was initially to show that models were far from real guns. Completely different mechanism was a safeguard from attempts to convert. Now ABS/HW is that safeguard, while mechanisms is much closer to the real one.

MGC design probably also plays a role here - after all early MGC (=metal models) was known for (and focused on) reliability and a working mechanisms, rather than realism.

Update:

Here's a few pictures of the firing mechanism in the slide. Contrary to what I wrote earlier firing bar is separate from the extractor, but both slide together forward/backward, while extractor additionally pivots. On the third picture you can see a cartridged pushed forward as far as the bar goes. Height is about one 7mm cap.

MGC (RMI) Beretta 1934, metal 73-mec10
MGC (RMI) Beretta 1934, metal 74-mec11
MGC (RMI) Beretta 1934, metal 75-mec10
MGC (RMI) Beretta 1934, metal 76-mec10


Last edited by smootik on Fri Jan 07, 2011 10:01 pm; edited 1 time in total
Back to top Go down
smootik
Modelgun Perfectionist
Modelgun Perfectionist
smootik


Number of posts : 1823
Location / Country : Poland
Registration date : 2009-03-03

MGC (RMI) Beretta 1934, metal Empty
PostSubject: Re: MGC (RMI) Beretta 1934, metal   MGC (RMI) Beretta 1934, metal Icon_minitimeFri Jan 07, 2011 9:55 pm

Size comparisons with MGC Colt 1911 and a standard DVD box.

Two pictures show a wooden grip panel from a real Beretta 1934. Right panel (the one on pictures) fits pretty good as it is, but the left one will have to be modified to fit the model by making cutouts for trigger mechanism. Original panel is also slightly smaller than the model one, so it doesn't cover enough grip. You can see it comparing the first picture with later ones - there is a "shadow" left on the grip where plastic panel is larger.

MGC (RMI) Beretta 1934, metal M1934-10
MGC (RMI) Beretta 1934, metal M1934-11
MGC (RMI) Beretta 1934, metal M1934-12

This particular movie is "Charlie Valentine", one of several directed by our forum colleague, signing himself JJ :-)
